Geometry - Angles at a Point
Question 1
Find the value of $x$ in the following diagrams
a)
a
$x=30$
Question ID: 30020010010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $60$° then for them to add up to $90$° the other angle must be $30$°
So $x=30$
Question ID: 30020010010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010010
Submit Yours! Copy Question ID and
click hereVideo by:

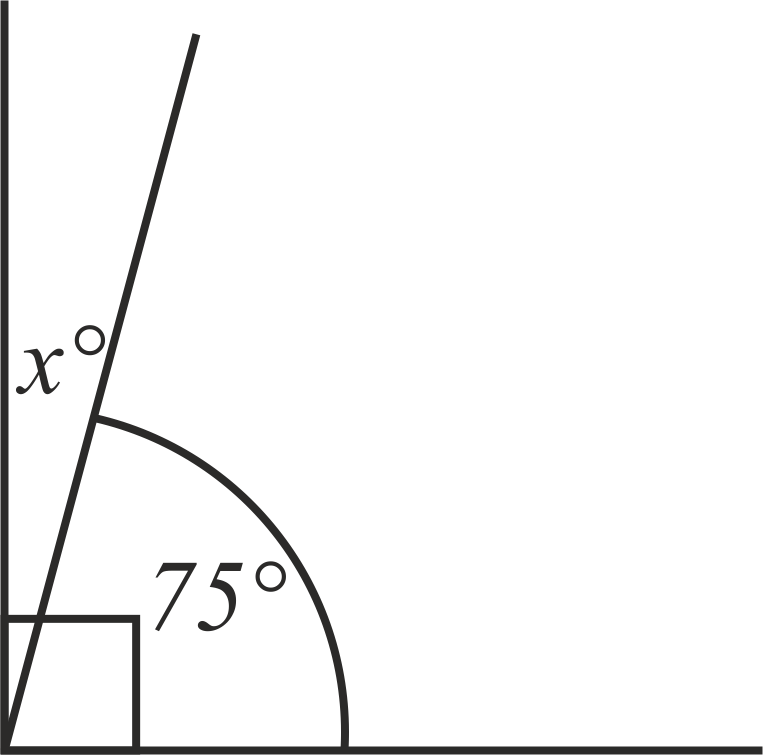

b)
a
$x=15$
Question ID: 30020010020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $75$° then for them to add up to $90$° the other angle must be $15$°
So $x=15$
Question ID: 30020010020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$x=45$
Question ID: 30020010030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $45$° then for them to add up to $90$° the other angle must be $45$°
So $x=45$
Question ID: 30020010030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010030
Submit Yours! Copy Question ID and
click hereVideo by:
d)
a
$x=70$
Question ID: 30020010040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $30$° then for them to add up to $90$° the other angle must be $70$°
So $x=70$
Question ID: 30020010040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010040
Submit Yours! Copy Question ID and
click hereVideo by:
e)
a
$x=40$
Question ID: 30020010050
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $50$° then for them to add up to $90$° the other angle must be $40$°
So $x=40$
Question ID: 30020010050
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010050
Submit Yours! Copy Question ID and
click hereVideo by:

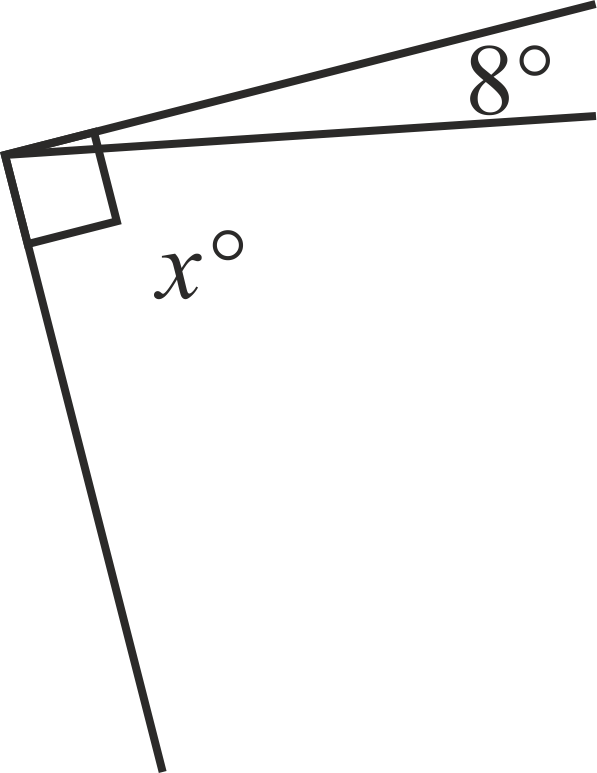

f)
a
$x=82$
Question ID: 30020010060
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $8$° then for them to add up to $90$° the other angle must be $82$°
So $x=82$
Question ID: 30020010060
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010060
Submit Yours! Copy Question ID and
click hereVideo by:
g)
a
$x=38$
Question ID: 30020010070
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $52$° then for them to add up to $90$° the other angle must be $38$°
So $x=38$
Question ID: 30020010070
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010070
Submit Yours! Copy Question ID and
click hereVideo by:
h)
a
$x=63$
Question ID: 30020010080
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $27$° then for them to add up to $90$° the other angle must be $63$°
So $x=63$
Question ID: 30020010080
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020010080
Submit Yours! Copy Question ID and
click hereVideo by:
Question 2
Find the value of $y$ in the following diagrams
a)
a
$y=120$
Question ID: 30020020010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020010
Submit Yours! Copy Question ID and
click hereVideo by:

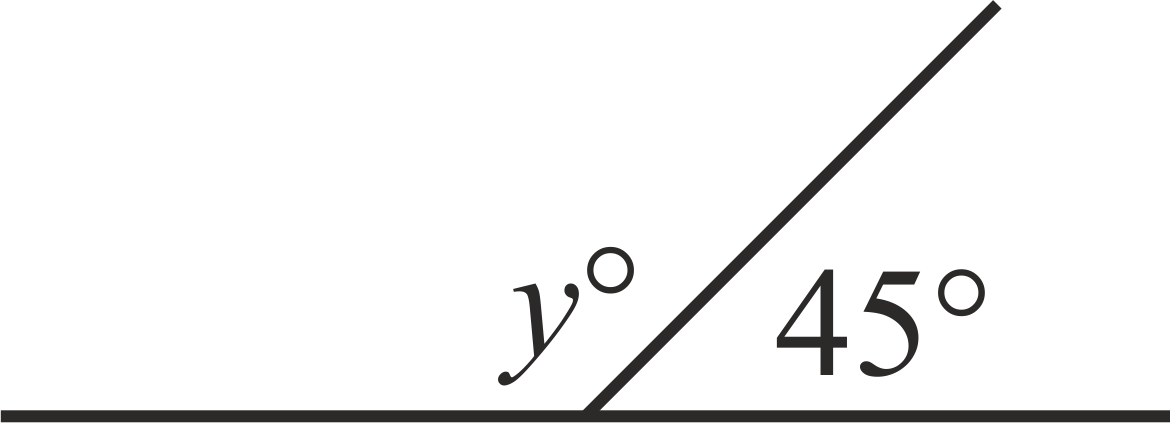

b)
a
$y=134$
Question ID: 30020020020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$y=90$
Question ID: 30020020030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020030
Submit Yours! Copy Question ID and
click hereVideo by:
d)
a
$y=16$
Question ID: 30020020040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020040
Submit Yours! Copy Question ID and
click hereVideo by:
e)
a
$y=100$
Question ID: 30020020050
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020050
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020050
Submit Yours! Copy Question ID and
click hereVideo by:
f)
a
$y=105$
Question ID: 30020020060
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020060
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020060
Submit Yours! Copy Question ID and
click hereVideo by:
g)
a
$y=69$
Question ID: 30020020070
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020070
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020070
Submit Yours! Copy Question ID and
click hereVideo by:
h)
a
$y=78$
Question ID: 30020020080
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020080
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020080
Submit Yours! Copy Question ID and
click hereVideo by:
i)
a
$y=37$
Question ID: 30020020090
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020090
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020090
Submit Yours! Copy Question ID and
click hereVideo by:
j)
a
$y=90$
Question ID: 30020020100
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020100
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020100
Submit Yours! Copy Question ID and
click hereVideo by:
k)
a
$y=107$
Question ID: 30020020110
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020020110
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020020110
Submit Yours! Copy Question ID and
click hereVideo by:
Question 3
Find the value of $z$ in the following diagrams

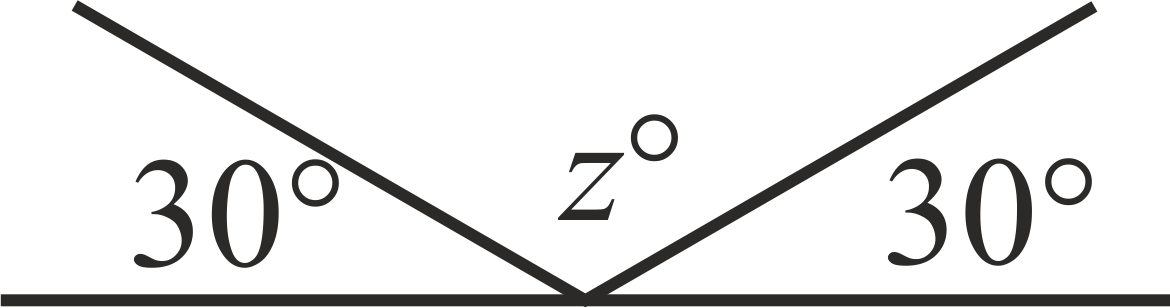

a)
a
$z=120$
Question ID: 30020030010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030010
Submit Yours! Copy Question ID and
click hereVideo by:

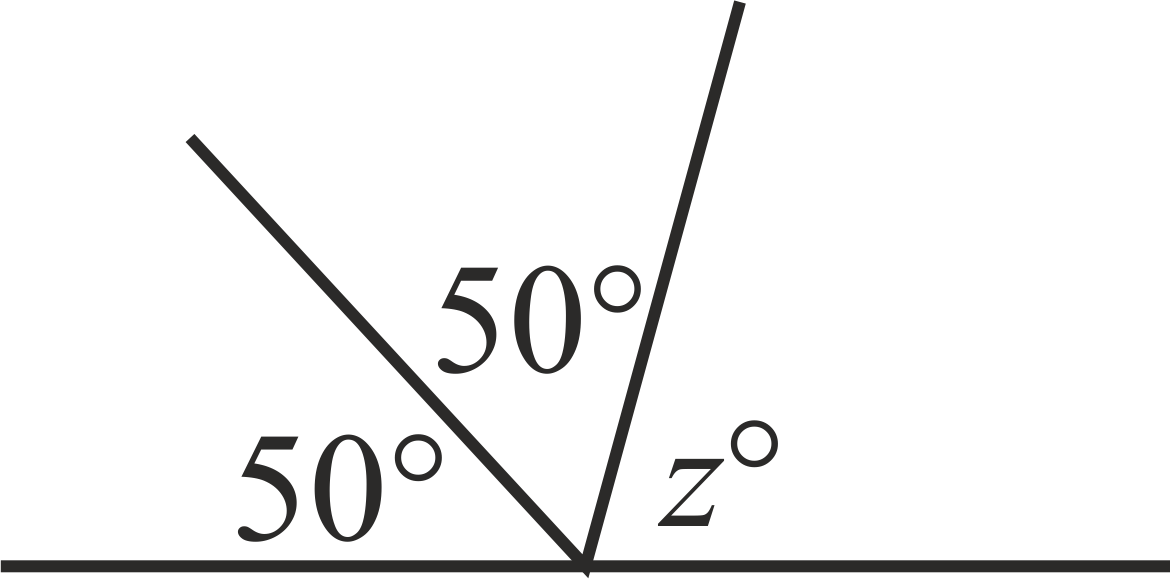

b)
a
$z=80$
Question ID: 30020030020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$z=60$
Question ID: 30020030030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030030
Submit Yours! Copy Question ID and
click hereVideo by:
d)
a
$z=100$
Question ID: 30020030040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030040
Submit Yours! Copy Question ID and
click hereVideo by:

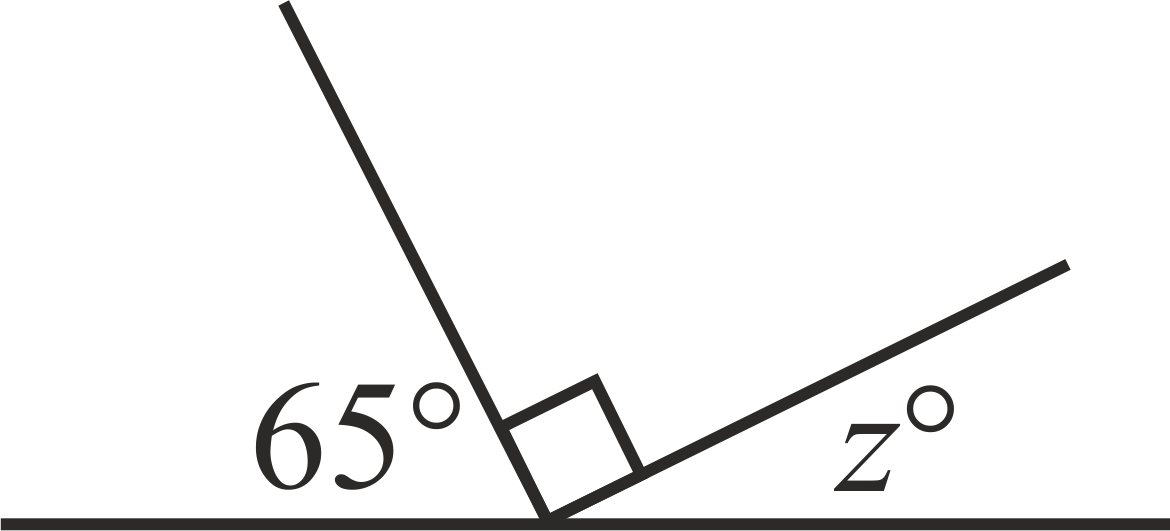

e)
a
$z=25$
Question ID: 30020030050
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030050
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030050
Submit Yours! Copy Question ID and
click hereVideo by:

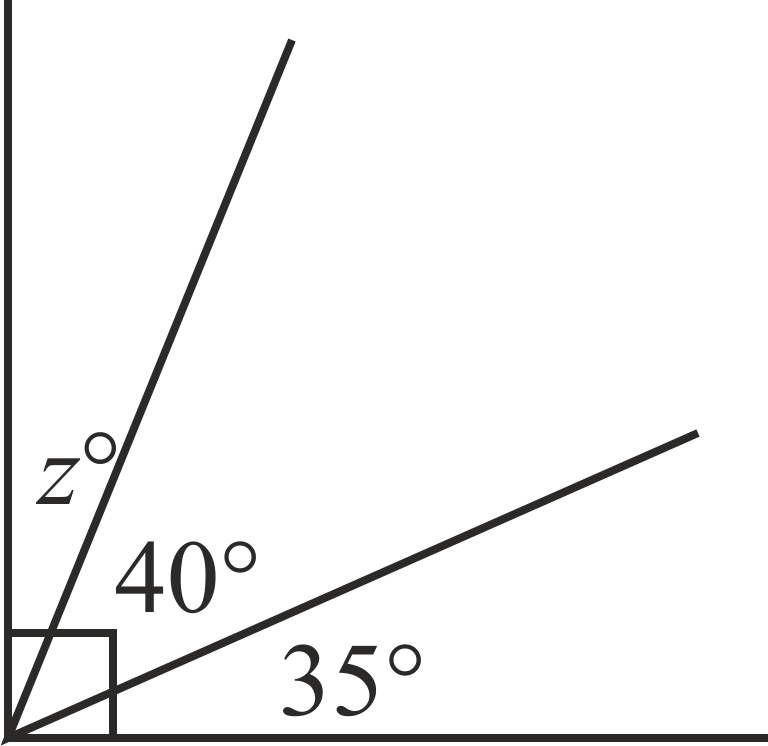

f)
a
$z=15$
Question ID: 30020030060
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030060
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030060
Submit Yours! Copy Question ID and
click hereVideo by:

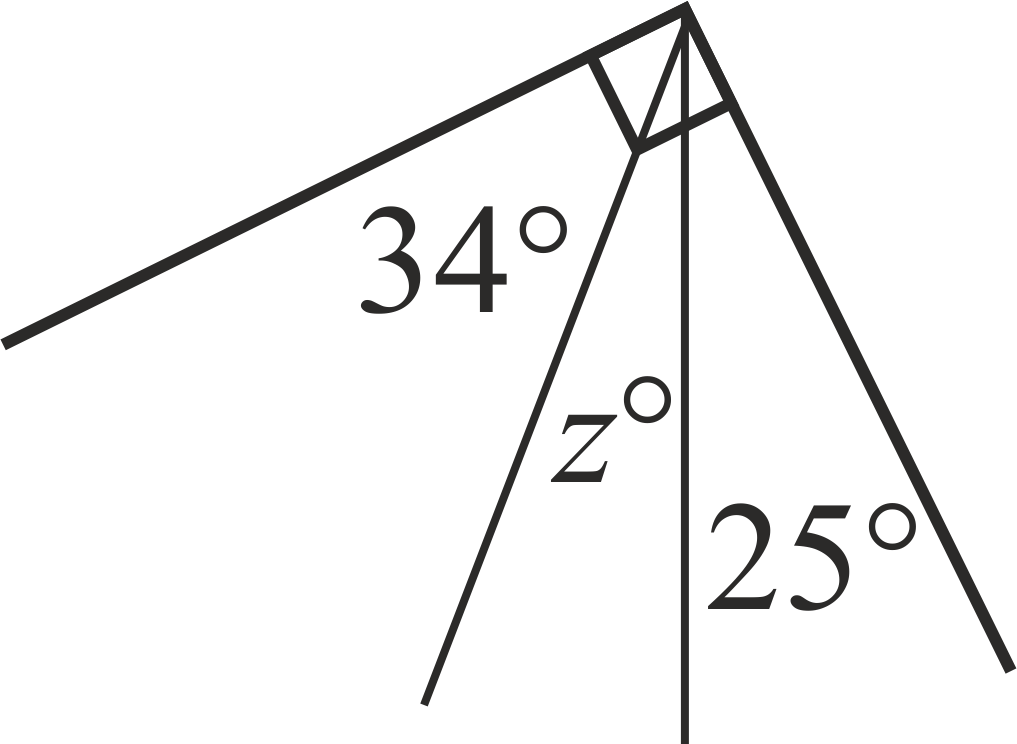

g)
a
$z=31$
Question ID: 30020030070
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030070
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030070
Submit Yours! Copy Question ID and
click hereVideo by:

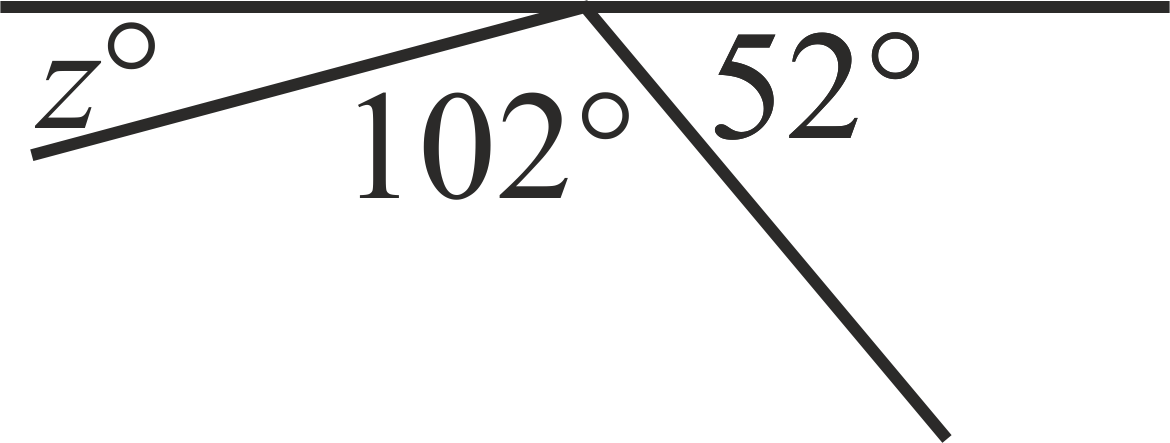

h)
a
$z=26$
Question ID: 30020030080
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030080
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030080
Submit Yours! Copy Question ID and
click hereVideo by:

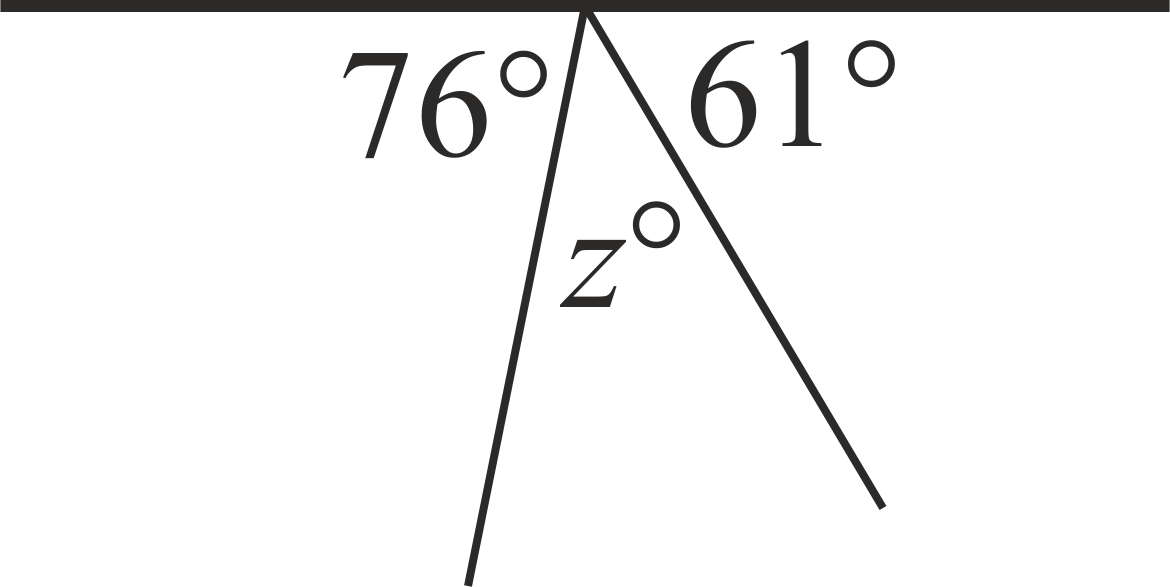

i)
a
$z=43$
Question ID: 30020030090
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030090
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030090
Submit Yours! Copy Question ID and
click hereVideo by:
j)
a
$z=67$
Question ID: 30020030100
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030100
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030100
Submit Yours! Copy Question ID and
click hereVideo by:
k)
a
$z=28$
Question ID: 30020030110
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030110
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030110
Submit Yours! Copy Question ID and
click hereVideo by:
l)
a
$z=37$
Question ID: 30020030120
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020030120
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020030120
Submit Yours! Copy Question ID and
click hereVideo by:

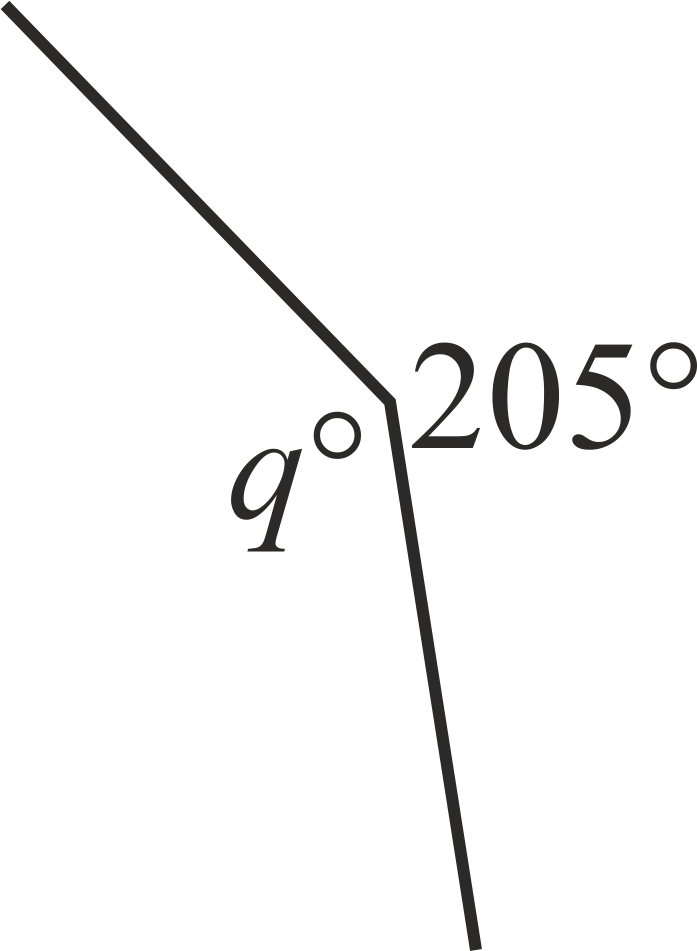

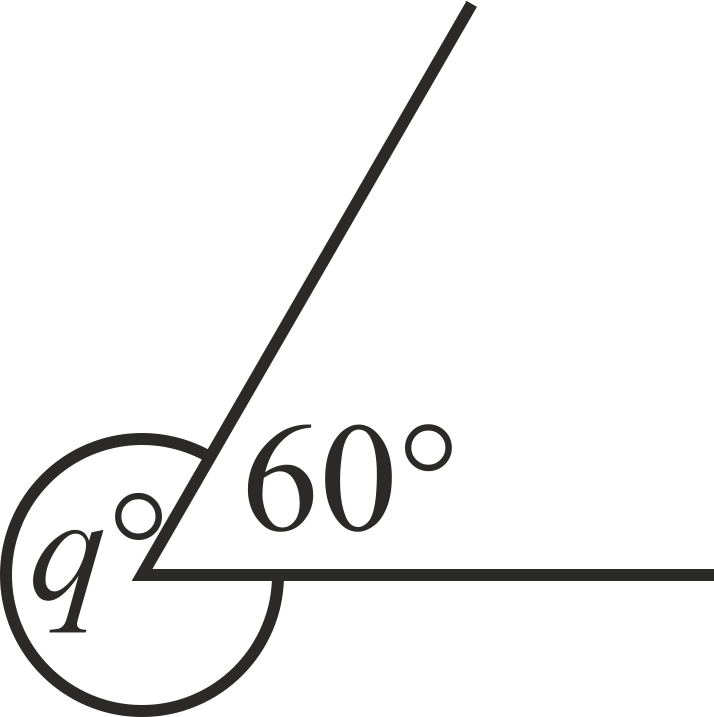

Question 4

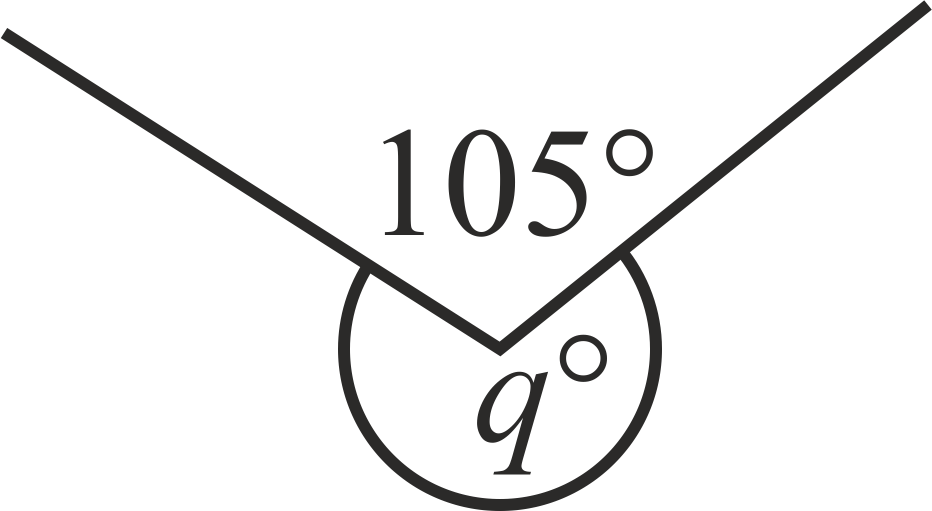

Find the value of $q$ in the following diagrams
a)
a
$q=300$
Question ID: 30020040010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040010
Submit Yours! Copy Question ID and
click hereVideo by:
b)
a
$q=135$
Question ID: 30020040020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$q=270$
Question ID: 30020040030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040030
Submit Yours! Copy Question ID and
click hereVideo by:
d)
a
$q=255$
Question ID: 30020040040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040040
Submit Yours! Copy Question ID and
click hereVideo by:
e)
a
$q=155$
Question ID: 30020040050
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040050
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040050
Submit Yours! Copy Question ID and
click hereVideo by:
f)
a
$q=40$
Question ID: 30020040060
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040060
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040060
Submit Yours! Copy Question ID and
click hereVideo by:

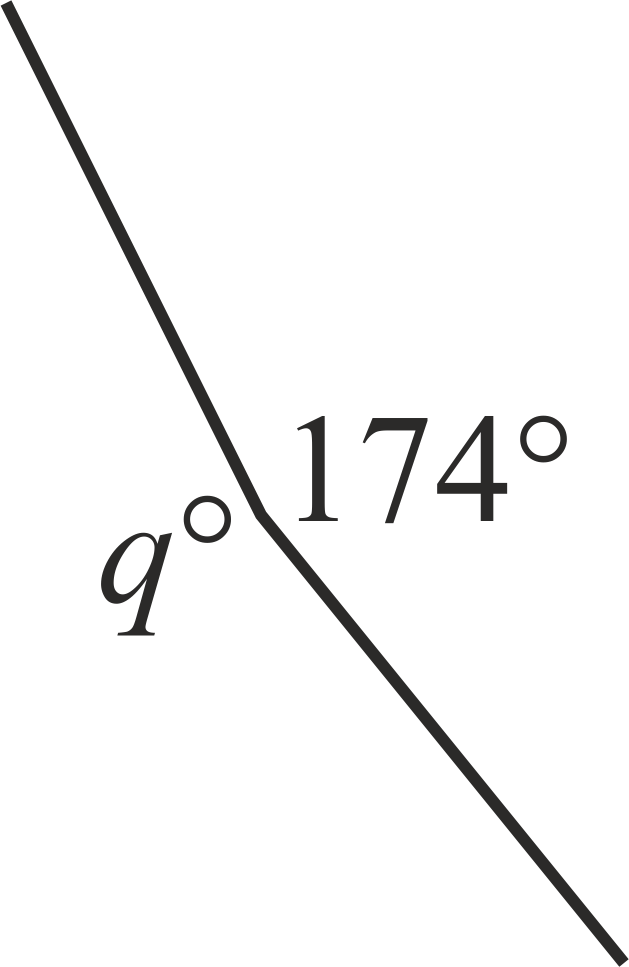

g)
a
$q=186$
Question ID: 30020040070
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020040070
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020040070
Submit Yours! Copy Question ID and
click hereVideo by:

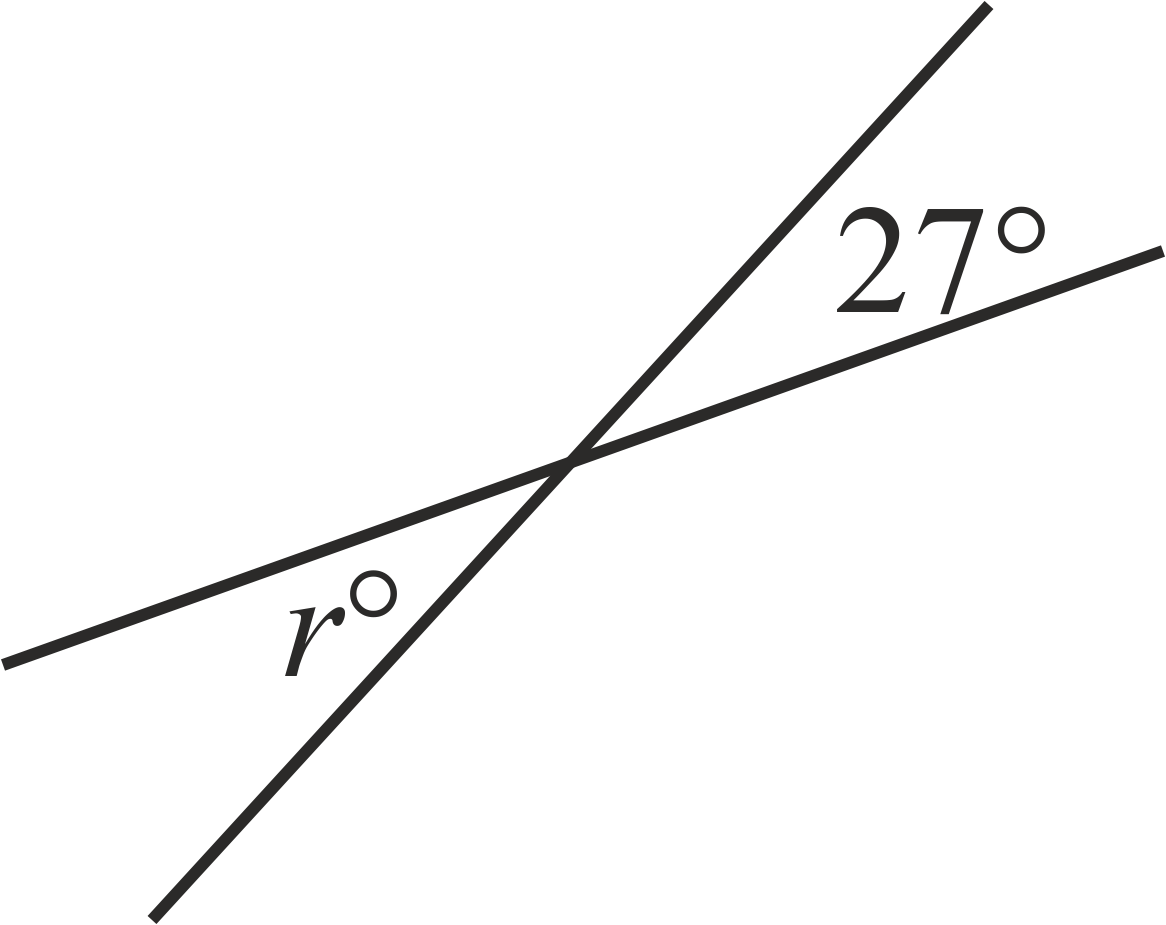

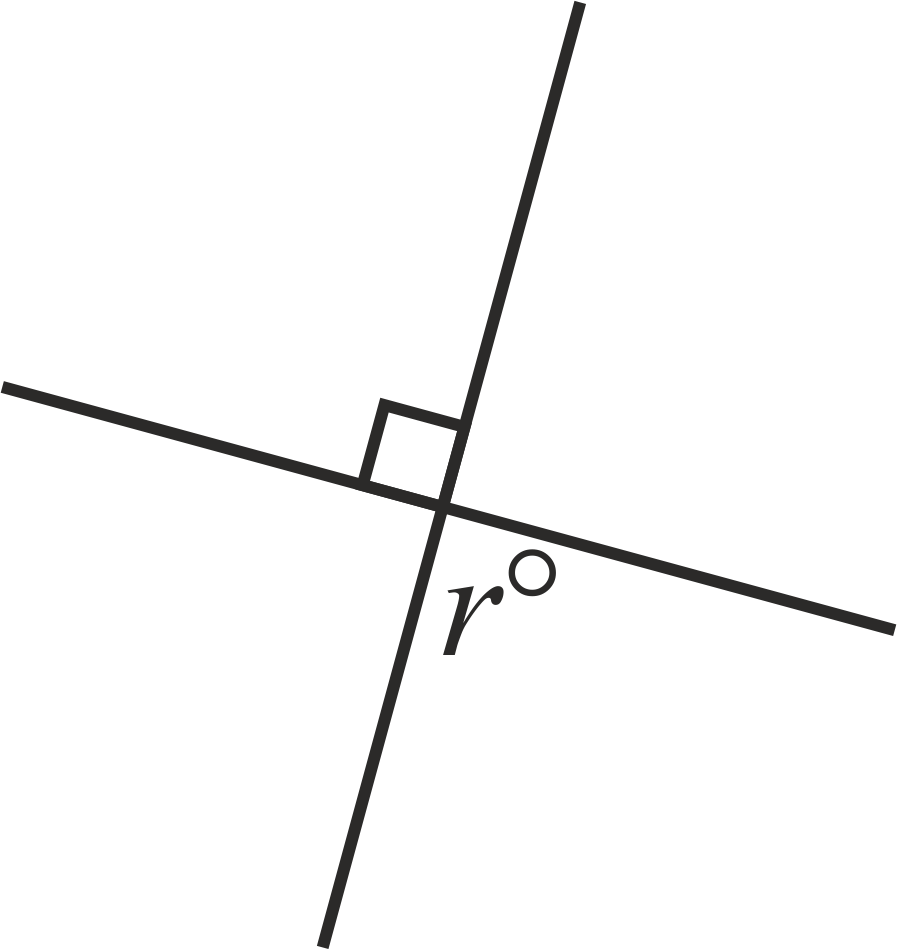

Question 5

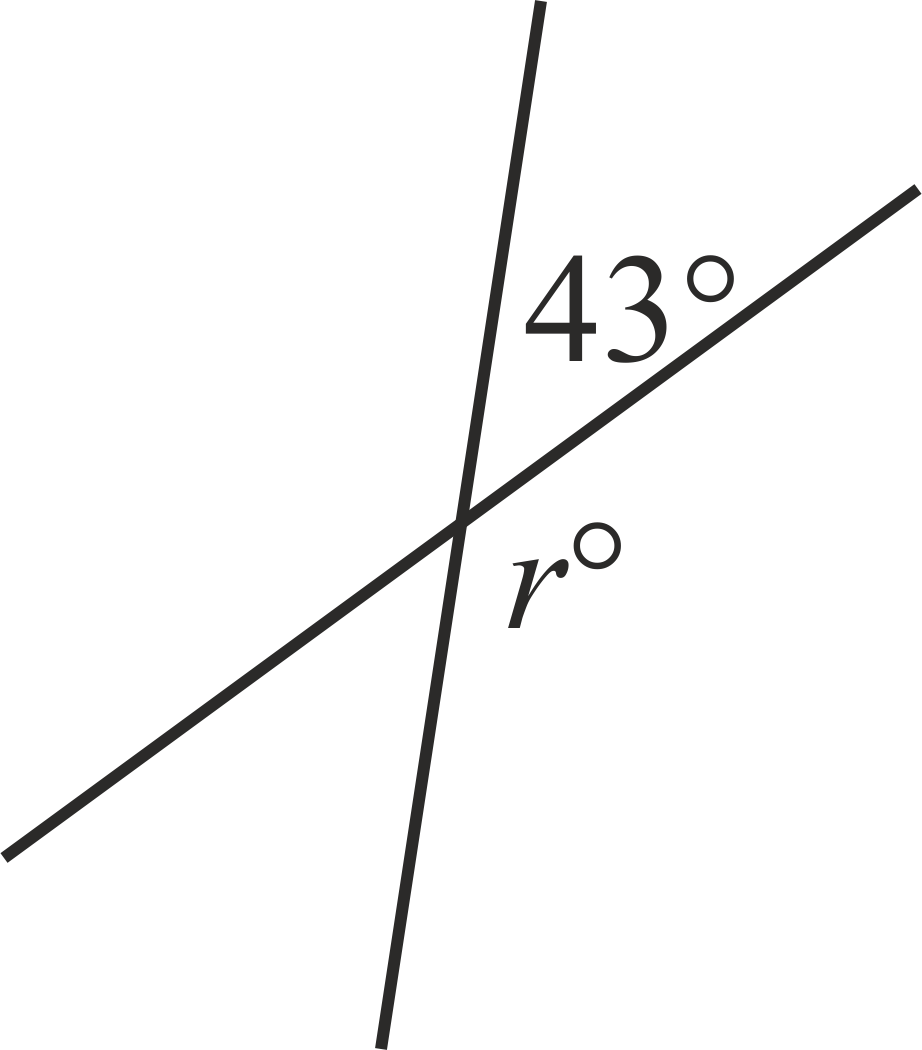

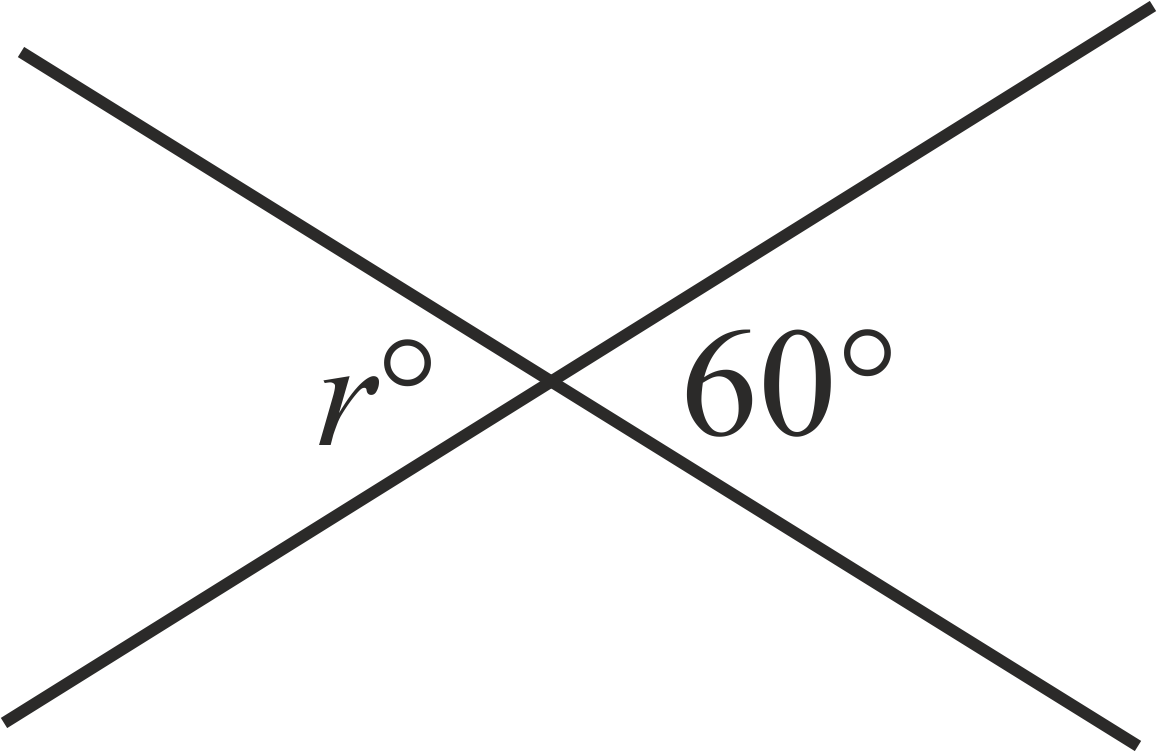

Find the value of $r$ in the following diagrams
a)
a
$r=60$
Question ID: 30020050010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020050010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020050010
Submit Yours! Copy Question ID and
click hereVideo by:

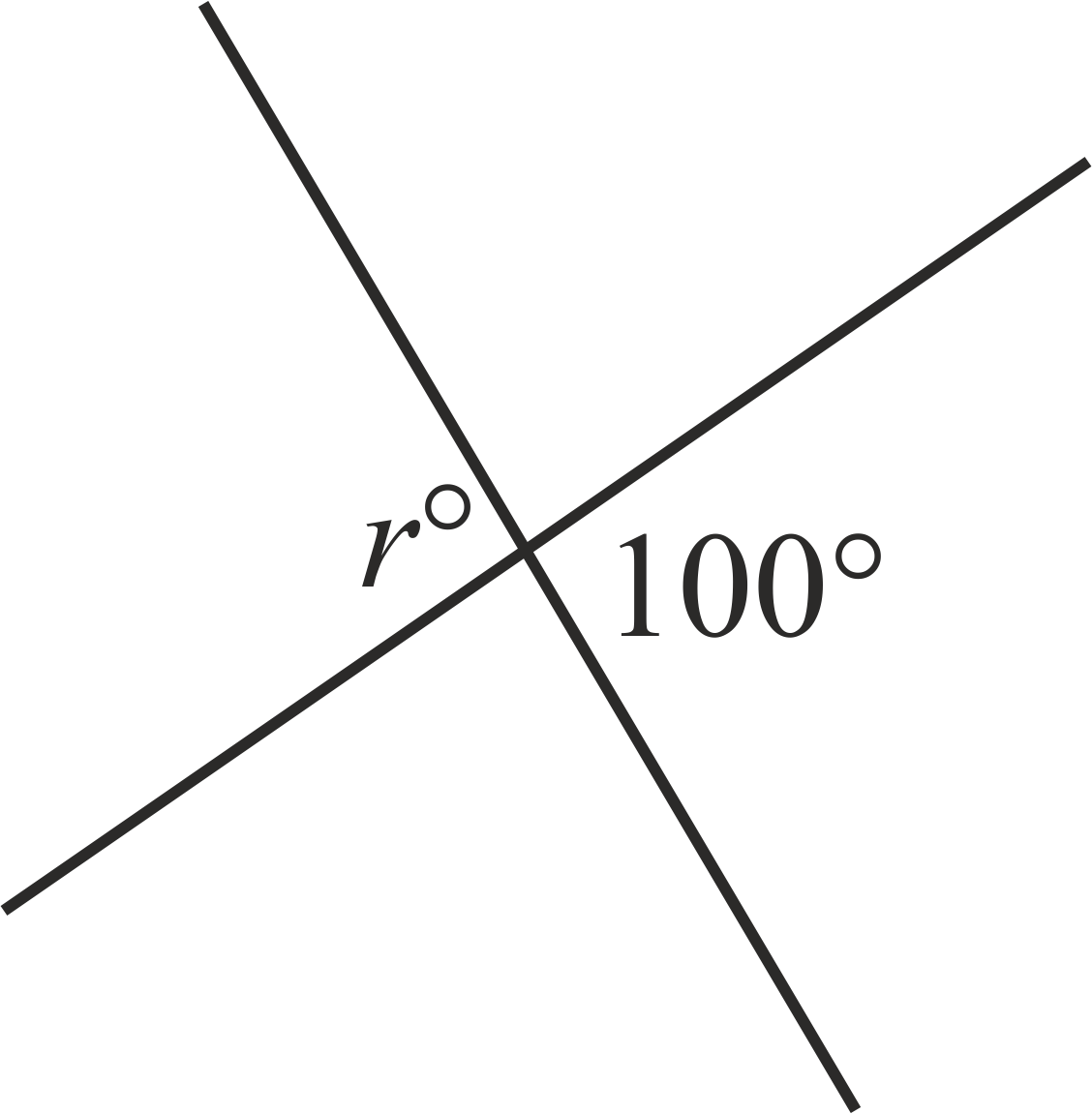

b)
a
$r=100$
Question ID: 30020050020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020050020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020050020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$r=163$
Question ID: 30020050030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020050030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020050030
Submit Yours! Copy Question ID and
click hereVideo by:
d)
a
$r=27$
Question ID: 30020050040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020050040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020050040
Submit Yours! Copy Question ID and
click hereVideo by:
e)
a
$r=90$
Question ID: 30020050050
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020050050
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020050050
Submit Yours! Copy Question ID and
click hereVideo by:
f)
a
$r=137$
Question ID: 30020050060
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020050060
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020050060
Submit Yours! Copy Question ID and
click hereVideo by:

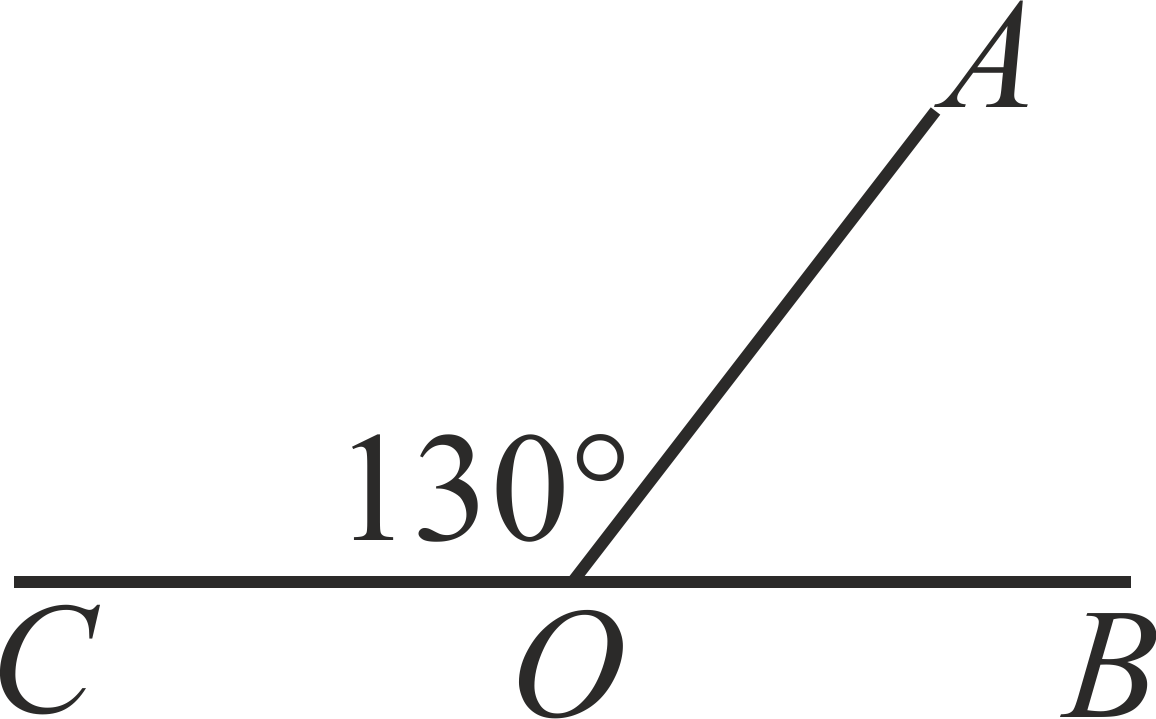

Question 6

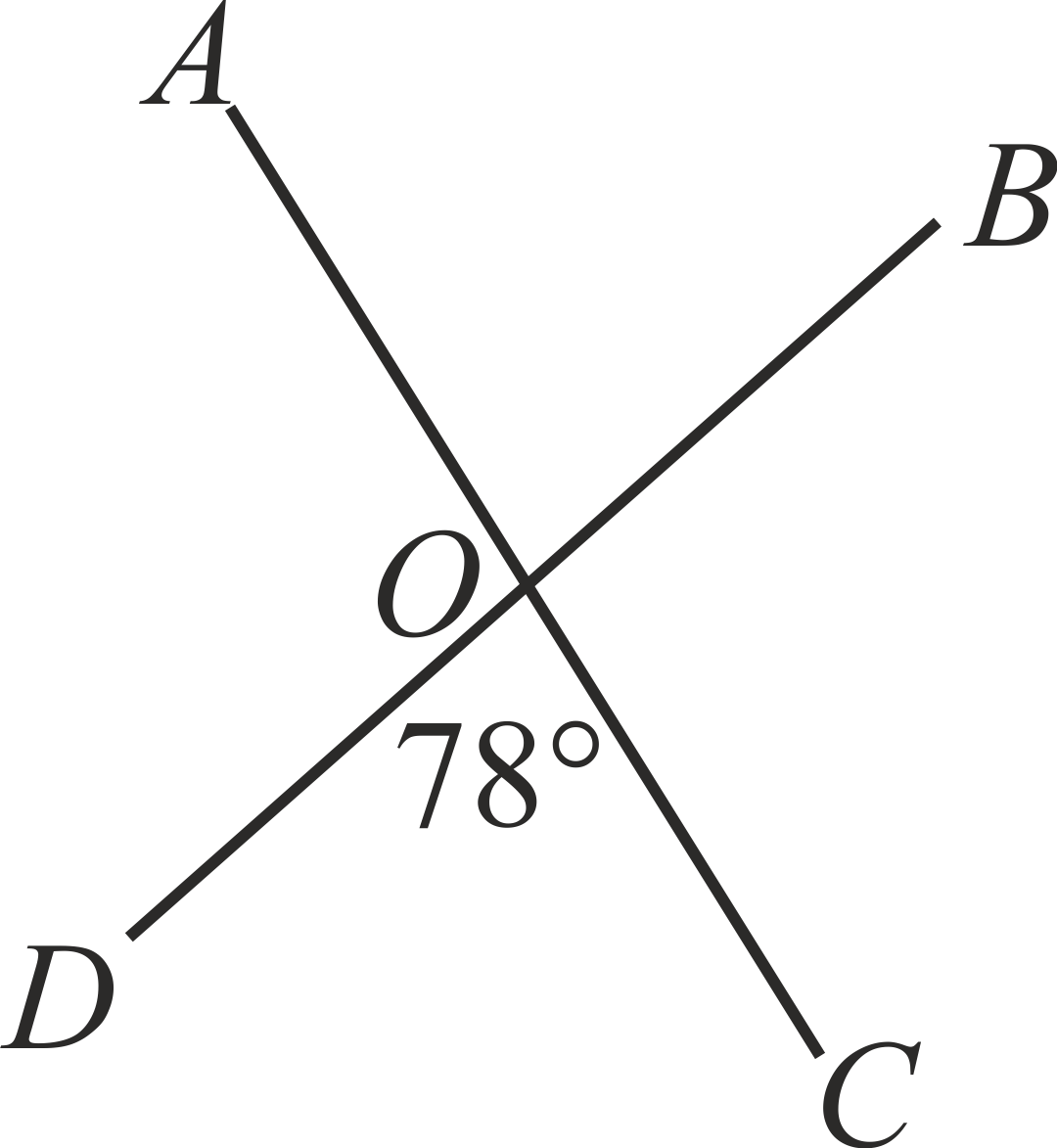

Find the value of the acute angle $\angle AOB$ in the following diagrams, giving reasons

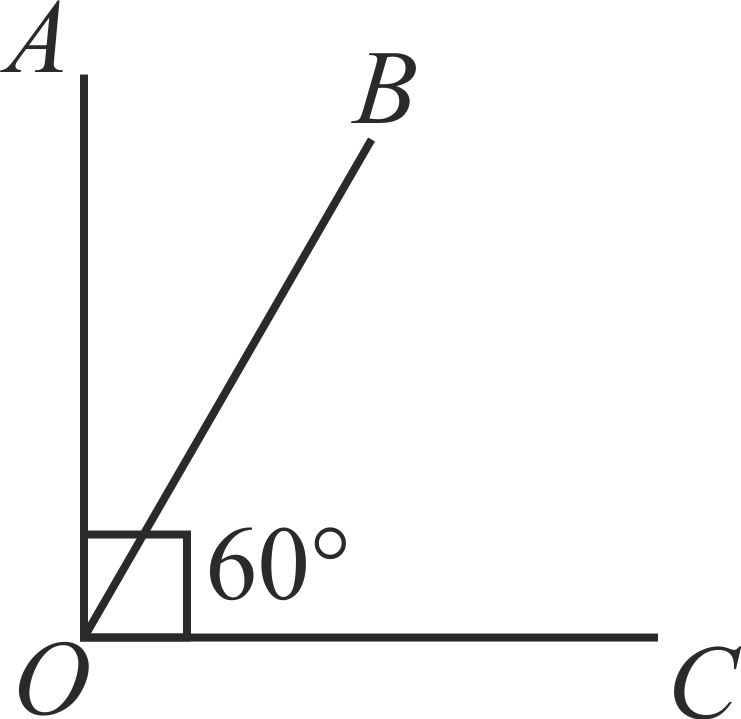

a)
a
$\angle AOB=30$°
Question ID: 30020060010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060010
Submit Yours! Copy Question ID and
click hereVideo by:
b)
a
$\angle AOB=50$°
Question ID: 30020060020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$\angle AOB=55$°
Question ID: 30020060030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060030
Submit Yours! Copy Question ID and
click hereVideo by:
d)
a
$\angle AOB=78$°
Question ID: 30020060040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060040
Submit Yours! Copy Question ID and
click hereVideo by:
e)
a
$\angle AOB=180$°
Question ID: 30020060050
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060050
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060050
Submit Yours! Copy Question ID and
click hereVideo by:
f)
a
$\angle AOB=49$°
Question ID: 30020060060
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060060
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060060
Submit Yours! Copy Question ID and
click hereVideo by:
g)
a
$\angle AOB=74$°
Question ID: 30020060070
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060070
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060070
Submit Yours! Copy Question ID and
click hereVideo by:
h)
a
$\angle AOB=24$°
Question ID: 30020060080
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020060080
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020060080
Submit Yours! Copy Question ID and
click hereVideo by:

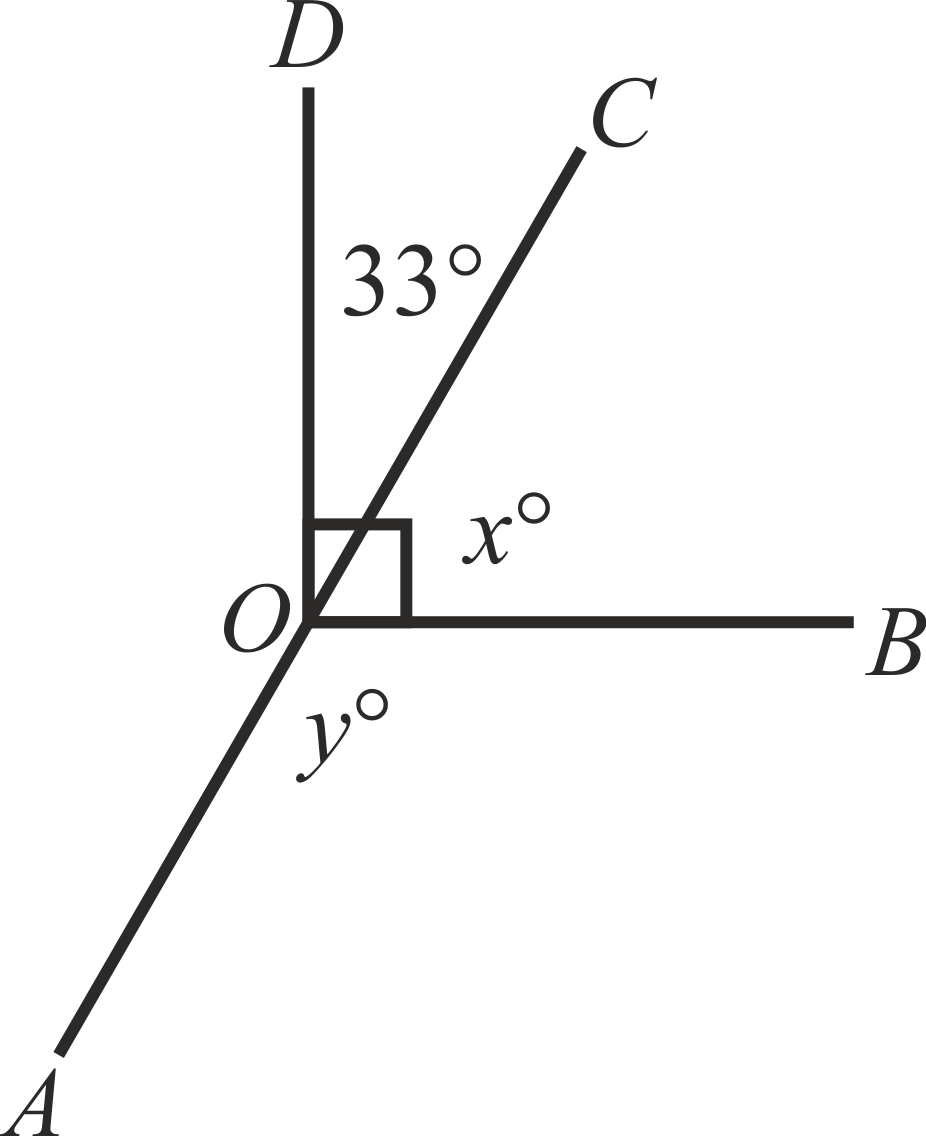

Question 7

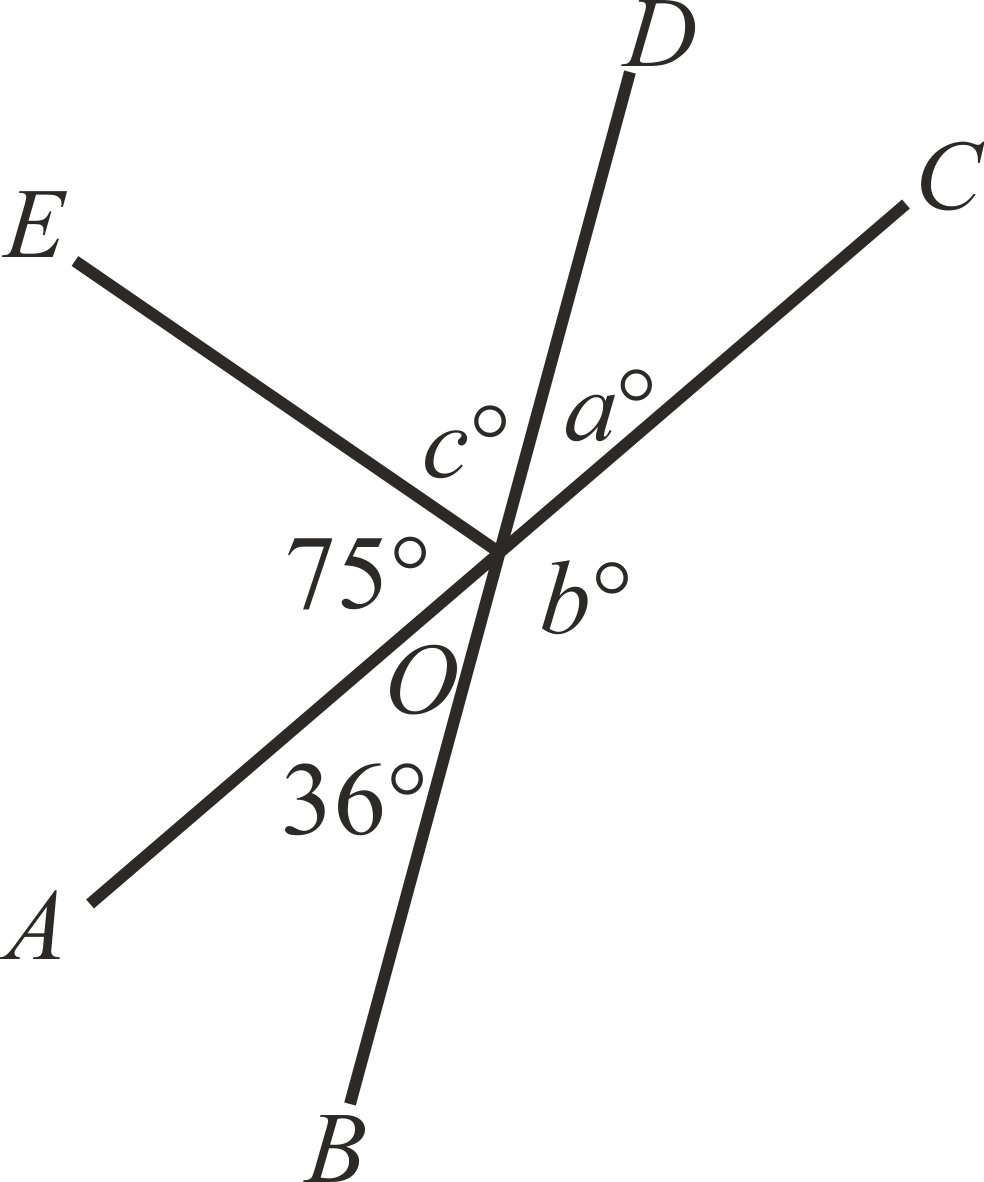

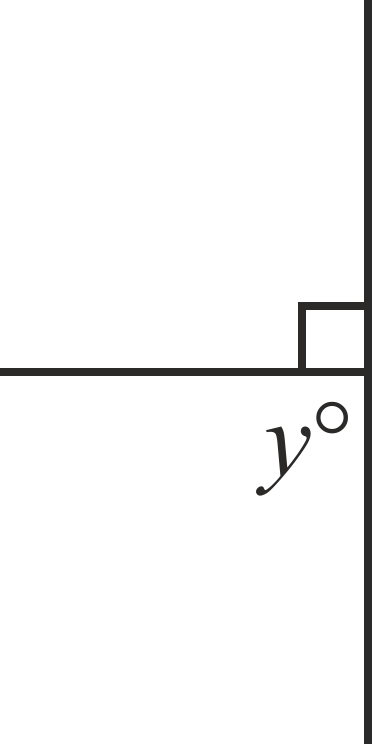

Find the value of the pronumerals in the following diagrams, giving reasons
a)
a
$x=57$, $y=123$
Question ID: 30020070010
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020070010
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020070010
Submit Yours! Copy Question ID and
click hereVideo by:
b)
a
$a=36$, $b=144$, $c=69$
Question ID: 30020070020
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020070020
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020070020
Submit Yours! Copy Question ID and
click hereVideo by:
c)
a
$m=46$
Question ID: 30020070030
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020070030
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020070030
Submit Yours! Copy Question ID and
click hereVideo by:

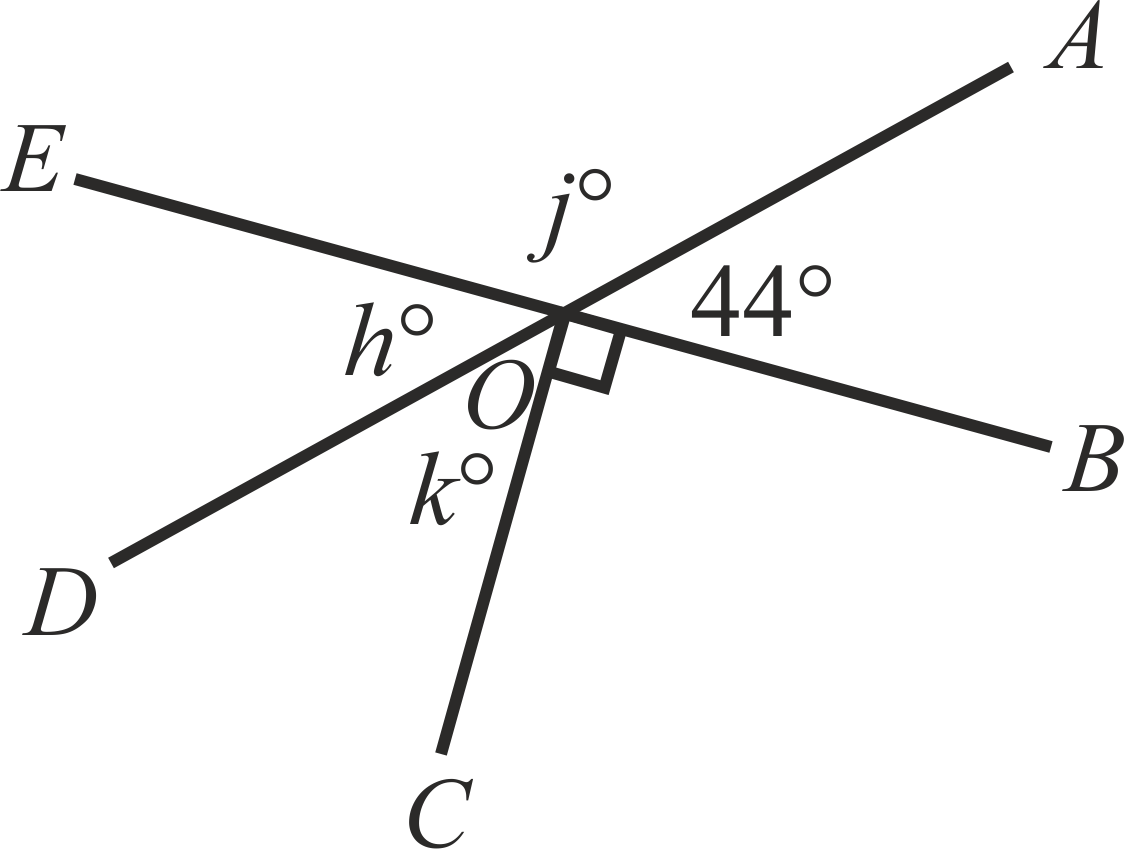

d)
a
$h=44$, $j=136$, $k=46$
Question ID: 30020070040
Something wrong? Copy Question ID and
contact usSubmit yours! Copy Question ID and
click hereQuestion by: ada
Answer by: ada
s
Question ID: 30020070040
Submit Yours! Copy Question ID and
click hereSolution by:
v
Question ID: 30020070040
Submit Yours! Copy Question ID and
click hereVideo by:
Question 1
Find the value of $x$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

h)

Question 2
Find the value of $y$ in the following diagrams

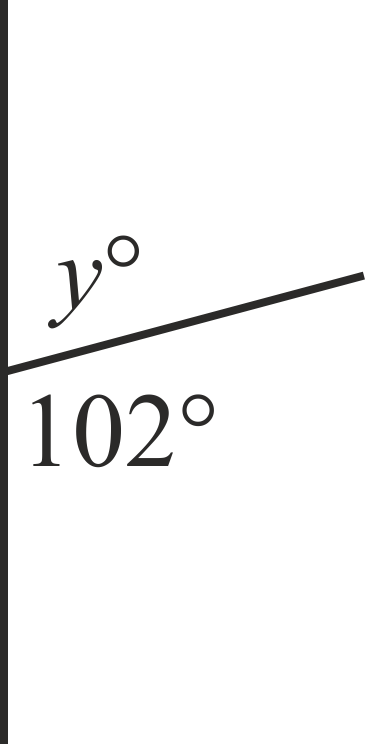

a)

b)

c)

d)

e)

f)

g)

h)

i)

j)

k)

Question 3

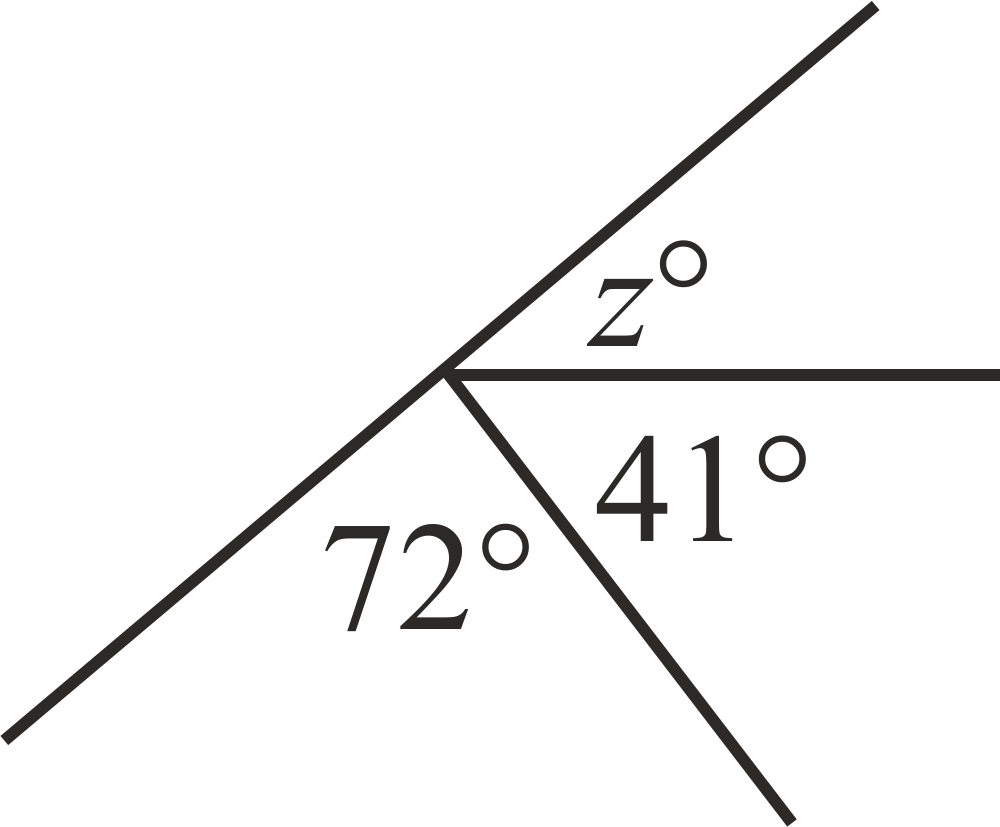

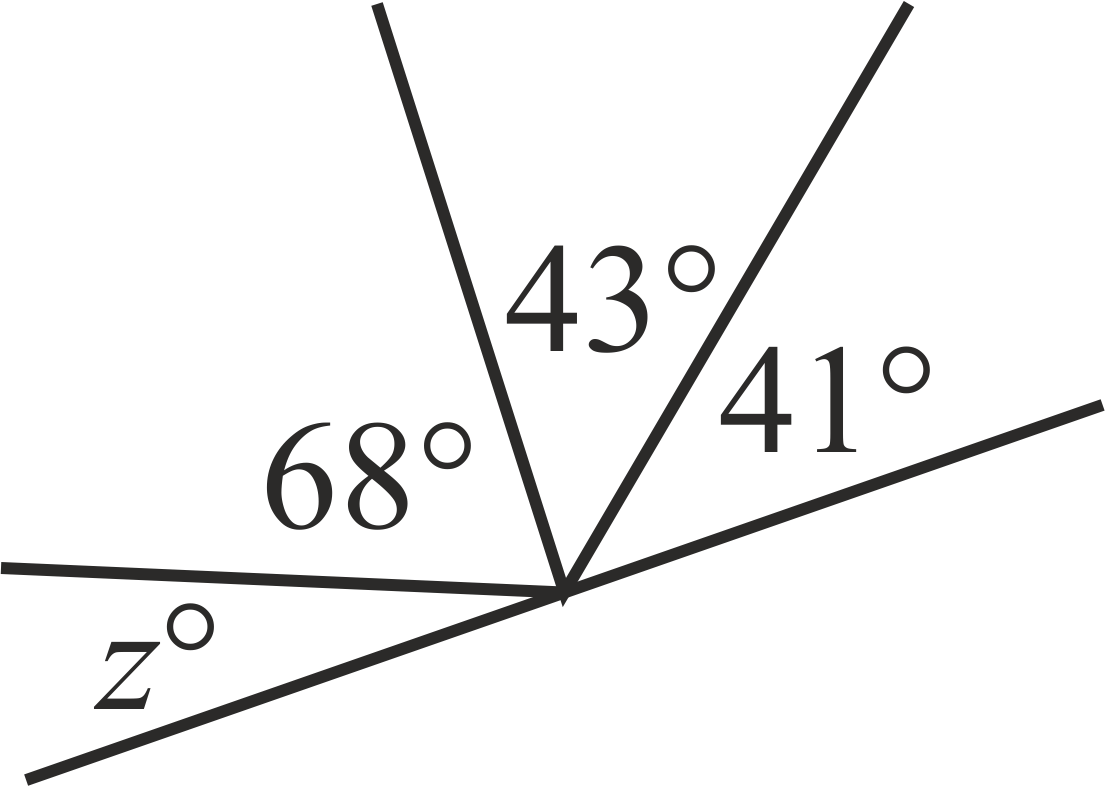

Find the value of $z$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

h)

i)

j)

k)

l)

Question 4

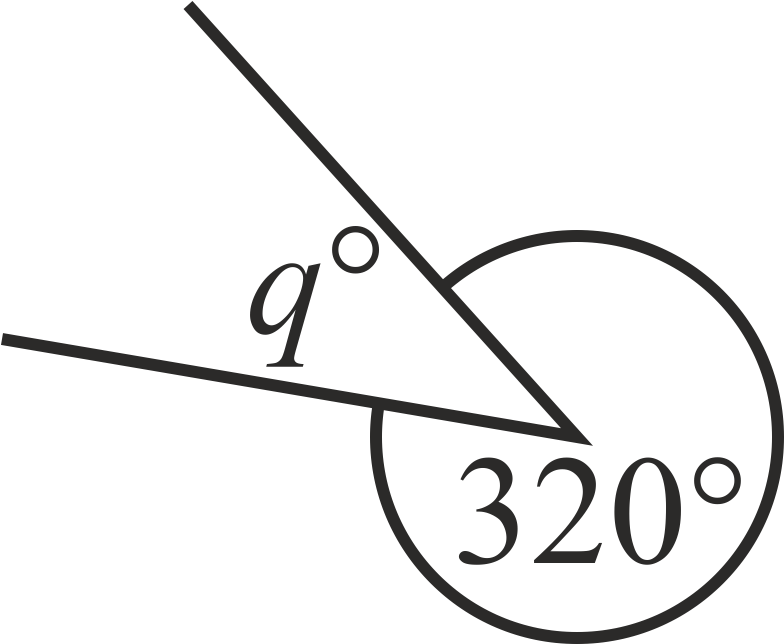

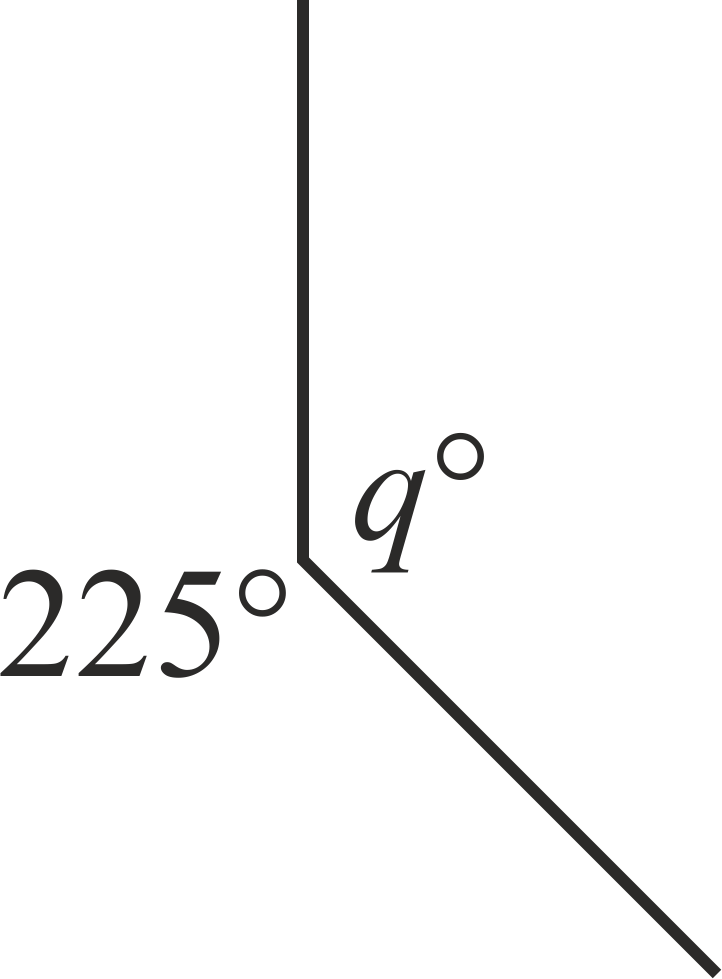

Find the value of $q$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

Question 5
Find the value of $r$ in the following diagrams
a)

b)

c)

d)

e)

f)

Question 6
Find the value of the acute angle $\angle AOB$ in the following diagrams, giving reasons

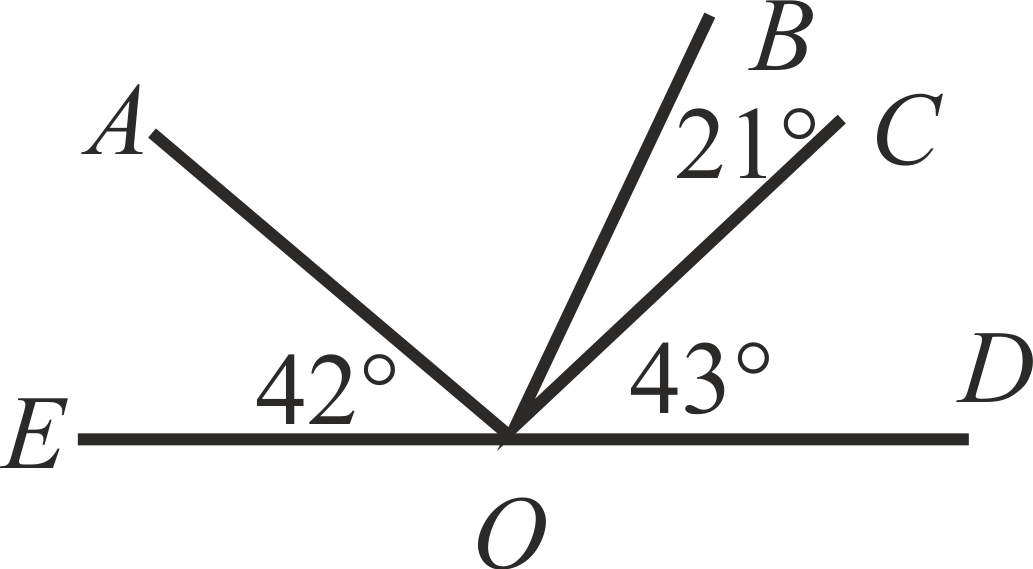

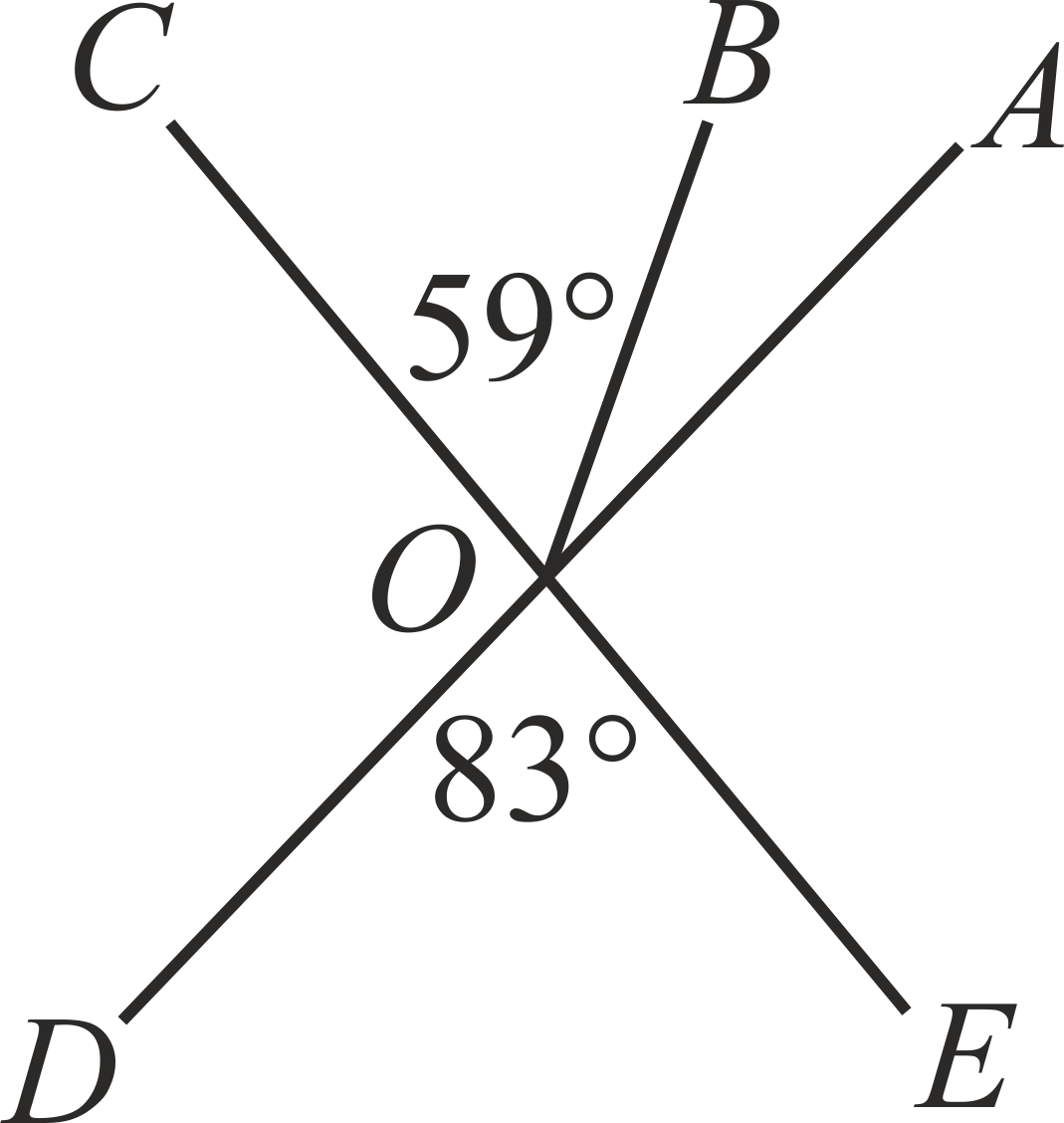

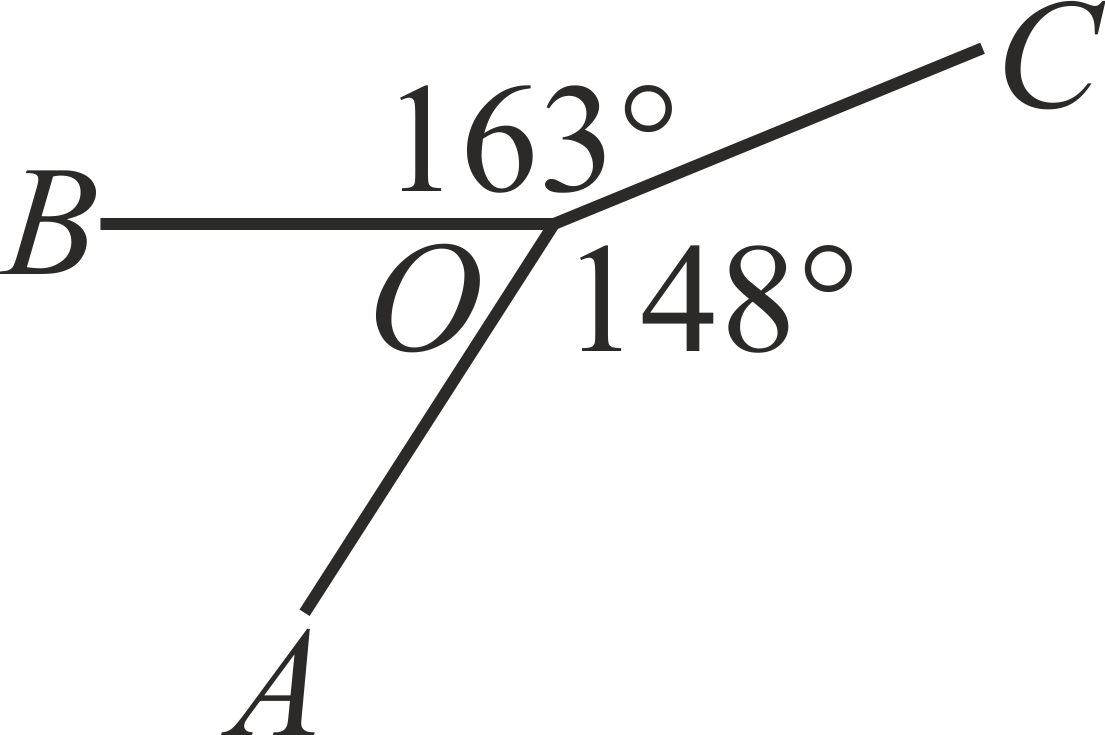

a)

b)

c)

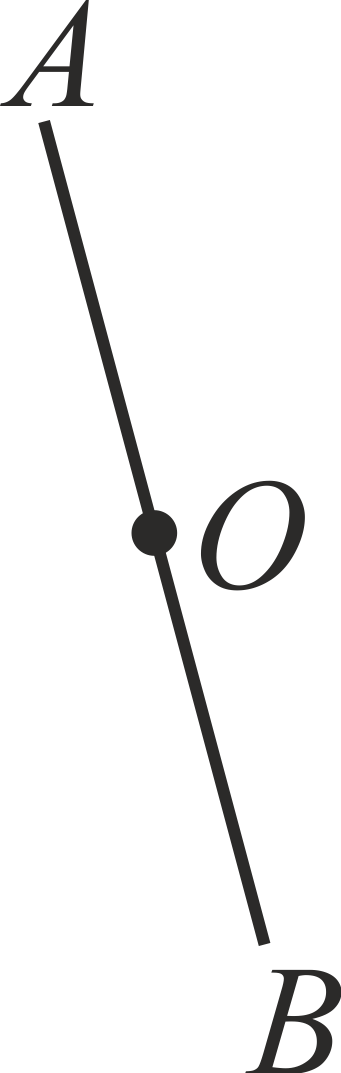

d)

e)

f)

g)

h)

Question 7
Find the value of the pronumerals in the following diagrams, giving reasons
a)

b)

c)

d)

Answers
Question 1
a) $x=30$
b) $x=15$
c) $x=45$
d) $x=70$
e) $x=40$
f) $x=82$
g) $x=38$
h) $x=63$
Question 2
a) $y=120$
b) $y=134$
c) $y=90$
d) $y=16$
e) $y=100$
f) $y=105$
g) $y=69$
h) $y=78$
i) $y=37$
j) $y=90$
k) $y=107$
Question 3
a) $z=120$
b) $z=80$
c) $z=60$
d) $z=100$
e) $z=25$
f) $z=15$
g) $z=31$
h) $z=26$
i) $z=43$
j) $z=67$
k) $z=28$
l) $z=37$
Question 4
a) $q=300$
b) $q=135$
c) $q=270$
d) $q=255$
e) $q=155$
f) $q=40$
g) $q=186$
Question 5
a) $r=60$
b) $r=100$
c) $r=163$
d) $r=27$
e) $r=90$
f) $r=137$
Question 6
a) $\angle AOB=30$°
b) $\angle AOB=50$°
c) $\angle AOB=55$°
d) $\angle AOB=78$°
e) $\angle AOB=180$°
f) $\angle AOB=49$°
g) $\angle AOB=74$°
h) $\angle AOB=24$°
Question 7
a) $x=57$, $y=123$
b) $a=36$, $b=144$, $c=69$
c) $m=46$
d) $h=44$, $j=136$, $k=46$
Question 1
Find the value of $x$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

h)

Question 2
Find the value of $y$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

h)

i)

j)

k)

Question 3
Find the value of $z$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

h)

i)

j)

k)

l)

Question 4
Find the value of $q$ in the following diagrams
a)

b)

c)

d)

e)

f)

g)

Question 5
Find the value of $r$ in the following diagrams
a)

b)

c)

d)

e)

f)

Question 6
Find the value of the acute angle $\angle AOB$ in the following diagrams, giving reasons
a)

b)

c)

d)

e)

f)

g)

h)

Question 7
Find the value of the pronumerals in the following diagrams, giving reasons
a)

b)

c)

d)

Answers
Question 1
a) $x=30$
b) $x=15$
c) $x=45$
d) $x=70$
e) $x=40$
f) $x=82$
g) $x=38$
h) $x=63$
Question 2
a) $y=120$
b) $y=134$
c) $y=90$
d) $y=16$
e) $y=100$
f) $y=105$
g) $y=69$
h) $y=78$
i) $y=37$
j) $y=90$
k) $y=107$
Question 3
a) $z=120$
b) $z=80$
c) $z=60$
d) $z=100$
e) $z=25$
f) $z=15$
g) $z=31$
h) $z=26$
i) $z=43$
j) $z=67$
k) $z=28$
l) $z=37$
Question 4
a) $q=300$
b) $q=135$
c) $q=270$
d) $q=255$
e) $q=155$
f) $q=40$
g) $q=186$
Question 5
a) $r=60$
b) $r=100$
c) $r=163$
d) $r=27$
e) $r=90$
f) $r=137$
Question 6
a) $\angle AOB=30$°
b) $\angle AOB=50$°
c) $\angle AOB=55$°
d) $\angle AOB=78$°
e) $\angle AOB=180$°
f) $\angle AOB=49$°
g) $\angle AOB=74$°
h) $\angle AOB=24$°
Question 7
a) $x=57$, $y=123$
b) $a=36$, $b=144$, $c=69$
c) $m=46$
d) $h=44$, $j=136$, $k=46$
Solutions
Question 1
a) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $60$° then for them to add up to $90$° the other angle must be $30$°
So $x=30$
b) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $75$° then for them to add up to $90$° the other angle must be $15$°
So $x=15$
c) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $45$° then for them to add up to $90$° the other angle must be $45$°
So $x=45$
d) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $30$° then for them to add up to $90$° the other angle must be $70$°
So $x=70$
e) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $50$° then for them to add up to $90$° the other angle must be $40$°
So $x=40$
f) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $8$° then for them to add up to $90$° the other angle must be $82$°
So $x=82$
g) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $52$° then for them to add up to $90$° the other angle must be $38$°
So $x=38$
h) The square means that the whole angle is a right angle.
A right angle is $90$°
As one of the angles is $27$° then for them to add up to $90$° the other angle must be $63$°
So $x=63$
Question 2
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
Question 3
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
Question 4
a)
b)
c)
d)
e)
f)
g)
Question 5
a)
b)
c)
d)
e)
f)
Question 6
a)
b)
c)
d)
e)
f)
g)
h)
Question 7
a)
b)
c)
d)
